Description
PRODUCT SPECIFICATION
Type : Wi-fi
Antenna : External

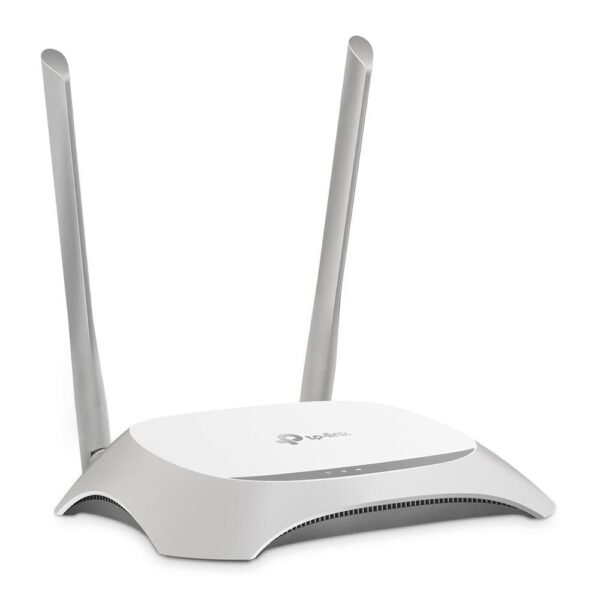

Model ID : TL-WR840N
Model Name : TL-WR840N
Product Code : COMTP-LINK-TL-WE-ST1145910B78F9818
Wireless Speed : 300 mbps
Wireless Type : 802.11n
No Of USB Ports : 0
Product Dimension : 26.4x18x8.6
Number Of LAN Ports : 4
Number Of WAN Ports : 1
POWER
Power Supply : 9V DC / 0.6A
DIMENSIONS
Item Dimensions LxWxH : 28.7 x 22.4 x 6.9 Centimeters
Item Weight : 105 g
IN THE BOX
In Sales Package : Wireless N Router TL-WR840N, Power supply unit, Resource CD, Ethernet Cable, Quick Installation Guide.
HARDWARE FEATURES
Button : WPS/RESET Button
Antenna : 2 Antennas
Interface : 4 10/100Mbps LAN ports, 1 10/100Mbps WAN Port
SOFTWARE FEATURES
WAN Type :
* Dynamic IP
* Dynamic IP
* Static IP
* PPPoE
* PPTP(Dual Access)
* L2TP(Dual Access)
* BigPond
Protocols : Support IPv4 and IPv6
Management
* Access Control
* Access Control
* Local Management
* Remote Management
Dynamic DNS : DynDns, Comexe, NO-IP
Guest Network : 2.4GHz Guest Network x1
Access Control :
* Parental Control
* Parental Control
* Local Management Control
* Host List
* Access Schedule
* Rule Management
Port Forwarding : Virtual Server,Port Triggering, UPnP, DMZ
VPN Pass Through : PPTP, L2TP, IPSec (ESP Head)
Firewall Security :
* DoS, SPI Firewall
* DoS, SPI Firewall
* IP Address Filter/MAC Address
* Filter/Domain Filter
* IP and MAC Address Binding
WIRELESS FEATURES
Frequency : 2.4 -2.48 GHz
Signal Rate :
* 11n: Up to 450 Mbps (dynamic)
* 11n: Up to 450 Mbps (dynamic)
* 11g: Up to 54 Mbps (dynamic)
* 11b: Up to 11Mbps (dynamic)
Transmit Power CE : <20dBm(2.4GHz), <23dBm(5GHz) FCC: <30dBm
Wireless Security : 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
Wireless Functions : Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Standards : IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Reception Sensitivity :
* 270M: -68dBm@10% PER
* 270M: -68dBm@10% PER
* 130M: -68dBm@10% PER
* 108M: -68dBm@10% PER
* 54M: -68dBm@10% PER
* 11M: -85dBm@8% PER
* 6M: -88dBm@10% PER
* 1M: -90dBm@8% PER
MANUFACTURING INFO
Imported By : TP-Link India Pvt. Ltd 201 A Wing Times Square Andheri Kurla Road Near Marol Naka Metro Station Andheri East Mumbai Maharashtra – 400059
OPERATING CONDITIONS
Storage Humidity : 5% – 90% non-condensing
Operating Humidity : 10% – 90% non-condensing
Storage Temperature : 40 C – 70 C degree
Operating Temperature : 0- 40 C degree
OTHER FEATURES
Certification : CE, RoHS
System Requirements : Windows 2000/XP/Vista™, Windows 7, Windows 8, Windows 8.1, Windows 10 or Mac OS or Linux-based operating system.
